TD-3C2-P|Taiwan Fu Hsing Industrial Co., Ltd.

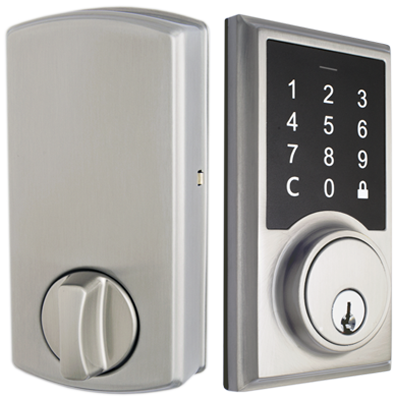

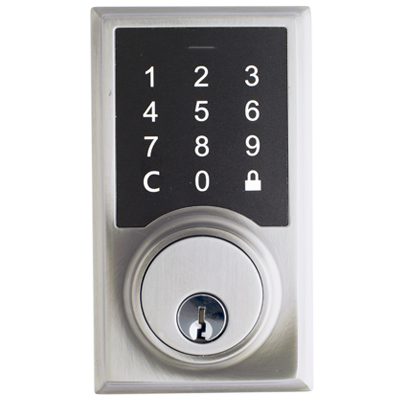

TD-3C2-P

Security Systems Product Electronic Door ControlsTouch Screen Series
TD-3C2-P
  1. 1、Pin code capacity : 10 sets (4 to 6 digits).
  2. 2、Programming code : 1 set (6 digits).
  3. 3、Key: 3.
  4. 4、Dimension (W*H*D): Exterior lock body 121mm x 68mm x 22mm，Interior lock body 174mm x 80mm x 52mm.
  5. 5、Finish: Antique Brass, Aged Bronze, Bright Chrome.
  6. 6、Door bore hole : 2-1/8"(54 mm) or 1-1/2"(38 mm).
  7. 7、Door thickness : 1-3/8"(35 mm) to 2"(51 mm).
  8. 8、Backset : 2-3/8"(60 mm) and 2-3/4"(70 mm).
  9. 9、Touch Screen Back-light color: White.
  10. 10、Power: Four AA 1.5V alkaline batteries.
  11. 11、Operation temperature: -31°F to 150.8°F (-35℃ to 66℃ )
  12. (Temperature tolerance could vary due to different weather conditions).
Great Convenience

Great Convenience

  • Unlocked by pin code or mechanical key.
  • Automatic bolt direction determination.
  • Vacation mode (deactivates all user codes temporarily).
  • Low battery indicator.
  • Back-up mechanical keyway.
Uncompromised Security

Uncompromised Security

  • ANSI/BHMA Grade 3 security.
  • Adjustable automatic relocking delay.
  • Illuminated keypad.
Easy Installation

Easy Installation

  • Replaces your existing deadbolt.
  • Fits most standard door preparations.
  • Easy installation with a Philips screwdriver.
