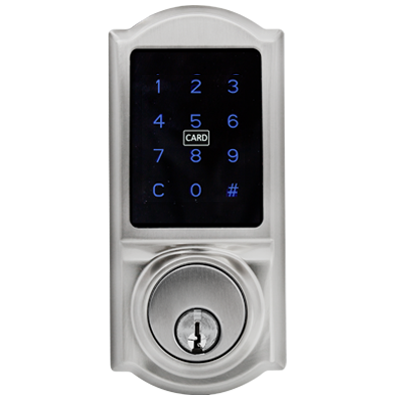

TD-509-P/PC

Security Systems Product Electronic Door ControlsTouch Screen Series
TD-509-P/PC
  1. 1、Pin code capacity : 25 sets (4 to 8 digits).
  2. 2、User card capacity: 25 sets.
  3. 3、Programming code : 1 set (4 to 8 digits).
  4. 4、Key: 2.

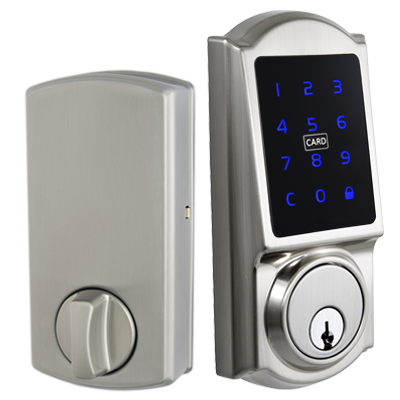

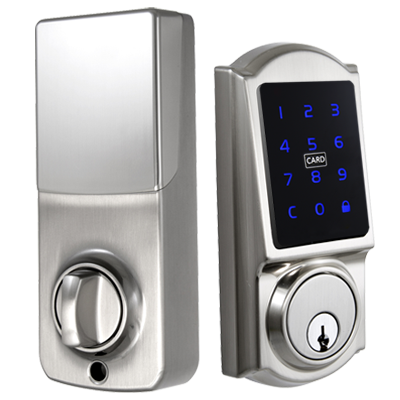

  5. 5、Dimension (W*H*D): Exterior lock body142 mm x 65 mm x 29.2 mm, Interior lock body174 mm x 70 mm x 38 mm.
  6. 6、Finish: Two-tone Black and Silver, Satin Nickel, Aged Bronze.
  7. 7、Door bore hole : 2-1/8"(54 mm) or 1-1/2"(38 mm).
  8. 8、Door thickness : 1-3/8"(35 mm) to 2"(51 mm).
  9. 9、Backset : 2-3/8"(60 mm) and 2-3/4"(70 mm).
  10. 10、Touch Screen Back-light color: Blue.
  11. 12、Power: Four AA 1.5V alkaline batteries.
  12. 13、Operation temperature: -31°F to 150.8°F (-35℃ to 66℃ )
  13. (Temperature tolerance could vary due to different weather conditions).
Great Convenience

Great Convenience

  • Simply touch the screen to operate.
  • Holds up to 25 user codes.
  • Holds up to 4 single-entry codes.
  • Volume control (adjustable to work with environments).
  • Vacation mode (deactivates all user codes temporarily).
  • Auto-lock with adjustable delay (10-99 seconds).
  • Back-up mechanical keyway.
Uncompromised Security

Uncompromised Security

  • ANSI Grade 2 quality – deadbolt operates over 150,000 times.
  • ANSI A156.25 compliant - resistant to dust, rain, and corrosion under variable temperatures.
  • 4-digit random guiding code prevents code-probing.
  • Touch screen is temporarily disabled after 4 consecutive incorrect entries.
Easy Installation

Easy Installation

  • Replaces your existing deadbolt.
  • Easy installation with a Philips screwdriver.
  • Fits most standard door preparations
