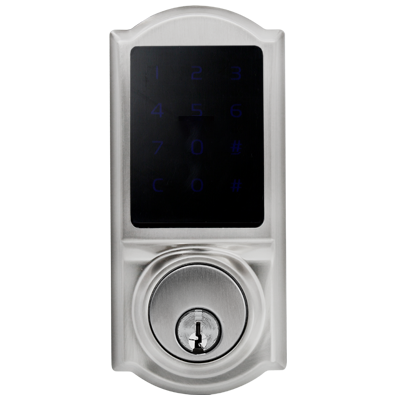

TD-509-PZ
- 1、Pin code capacity : 25 sets (4 to 8 digits).
- 2、Programming code : 1 set (4 to 8 digits).
- 3、Key: 2.
- 4、Dimension (W*H*D): Exterior lock body142 mm x 65 mm x 29.2 mm, Interior lock body174 mm x 70 mm x 38 mm.
- 5、Finish: Two-tone Black and Silver, Satin Nickel, Aged Bronze.
- 6、Door bore hole : 2-1/8"(54 mm) or 1-1/2"(38 mm).
- 7、Door thickness : 1-3/8"(35 mm) to 2"(51 mm).
- 8、Backset : 2-3/8"(60 mm) and 2-3/4"(70 mm).
- 9、Back-light color: Blue.
- 10、Power: Four AA 1.5V alkaline batteries.
- 11、Operation temperature: -31°F to 150.8°F (-35℃ to 66℃ )
- (Temperature tolerance could vary due to different weather conditions).
- 12、Connectivity: Z-wave.
Share
Great Convenience
- Simply touch the screen to operate.
- Holds up to 25 user codes.
- Holds up to 4 single-entry codes.
- Volume control (adjustable to work with environments).
- Vacation mode (deactivates all user codes temporarily).
- Auto-lock with adjustable delay (10-99 seconds).
- Back-up mechanical keyway.
Uncompromised Security
- ANSI Grade 2 quality – deadbolt operates over 150,000 times.
- ANSI A156.25 compliant - resistant to dust, rain, and corrosion under variable temperatures.
- 4-digit random guiding code prevents code-probing.
- Touch screen is temporarily disabled after 4 consecutive incorrect entries.
Easy Installation
- Replaces your existing deadbolt.
- Easy installation with a Philips screwdriver.
- Fits most standard door preparations.
