KL-308-P|Taiwan Fu Hsing Industrial Co., Ltd.

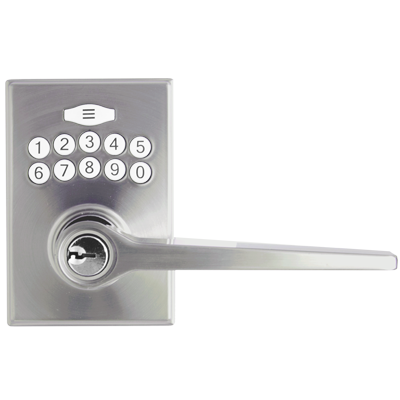

KL-308-P

KL-308-P
  1. 1、Pin code capacity : 20 sets (4 to 6 digits).
  2. 2、Programming code : 1 set (6 digits).
  3. 3、Key: 3.
  4. 4、Dimension (W*H*D): Exterior lock body 99mm x 68 mm x 12mm, Interior lock body 139 mm x 67 mm x 31 mm.
  5. 5、Finish: Satin Nickel, Aged Bronze, Matte Black.
  6. 6、Door bore hole : 2-1/8"(54 mm).
  7. 7、Door thickness : 1-3/8"(35 mm) to 2"(51 mm).
  8. 8、Backset : 2-3/8"(60 mm) and 2-3/4"(70 mm)
  9. 9、Back-light color: Green.
  10. 10、Power: Four AAA 1.5V alkaline batteries.
  11. 11、Operation temperature: -31°F to 150.8°F (-35℃ to 66℃ )
  12. (Temperature tolerance could vary due to different weather conditions).
Great Convenience

Great Convenience

  • Automatic bolt direction determination.
  • Vacation mode (deactivates all user codes temporarily).
  • Low battery indicator.
  • Back-up mechanical keyway.
Uncompromised Security

Uncompromised Security

  • ANSI Grade 3 security.
  • ANSI A 156.25 compliant - resistant to dust, rain, and corrosion under variable temperatures.
  • Keypad is temporarily disabled after 4 consecutive incorrect entries.
  • Illuminated keypad.
Easy Installation

Easy Installation

  • Replaces your existing leverset.
  • Fits most standard door preparations.
  • Easy installation with a Philips screwdriver.
